Cables
Durable
Stainless steel conduit
Double-lock crush proof
Screened
Shielded conductors
Low noise for digital comms
Customisable
Custom lengths available
Connector type options
Calibrated
Continuity / HV breakdown tested
Certificated / ISO traceable
Features
Stainless steel double-lock conduit
3 x K-type TC conductors
3 x EEPROM conductors for digital comms
4 x conductors for analog probe signals
PTFE fluidic connection for purge gas
2 x latching / push-pull 10-pin connectors
Rated to 200 deg C

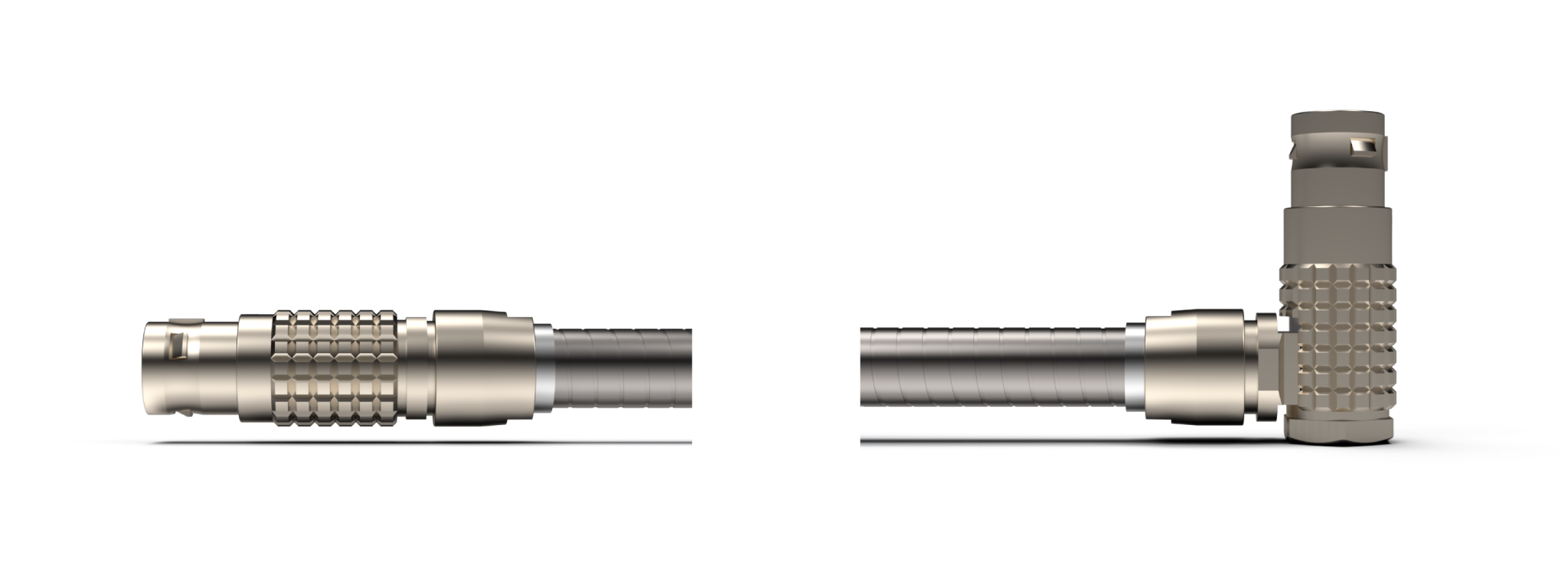

Probe connection cable

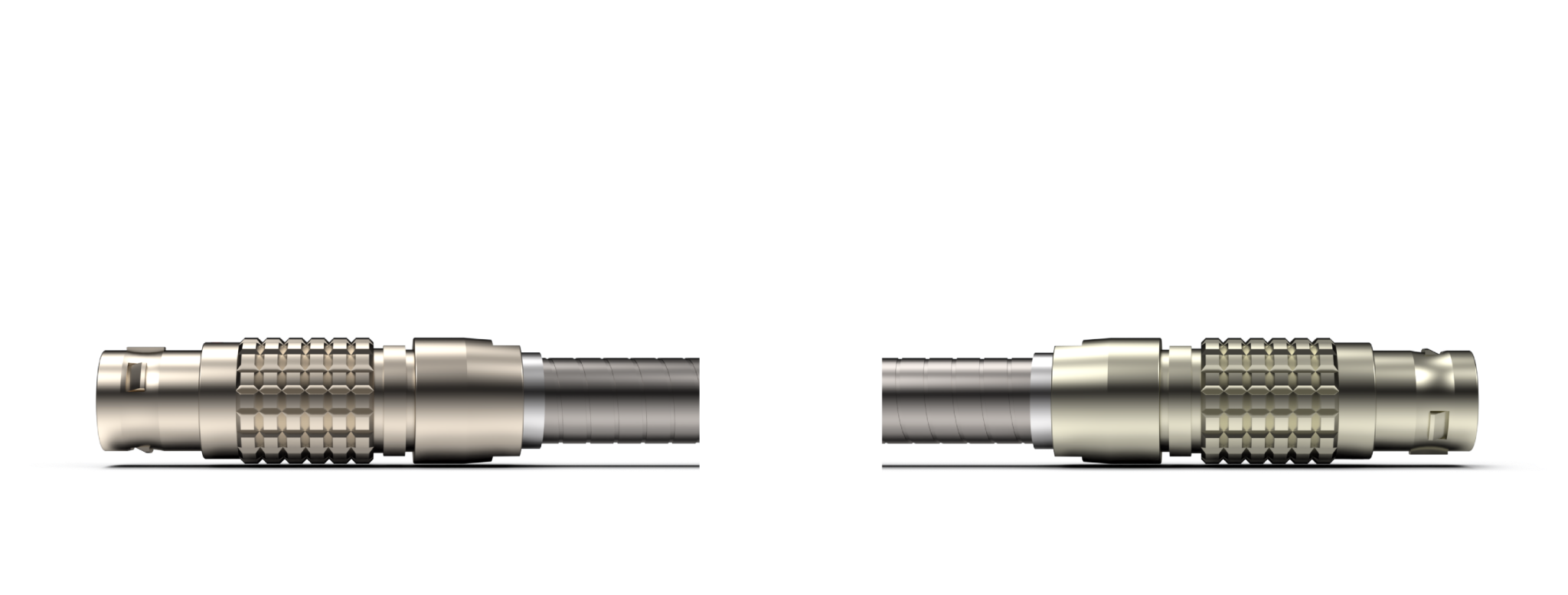

Probe cable straight

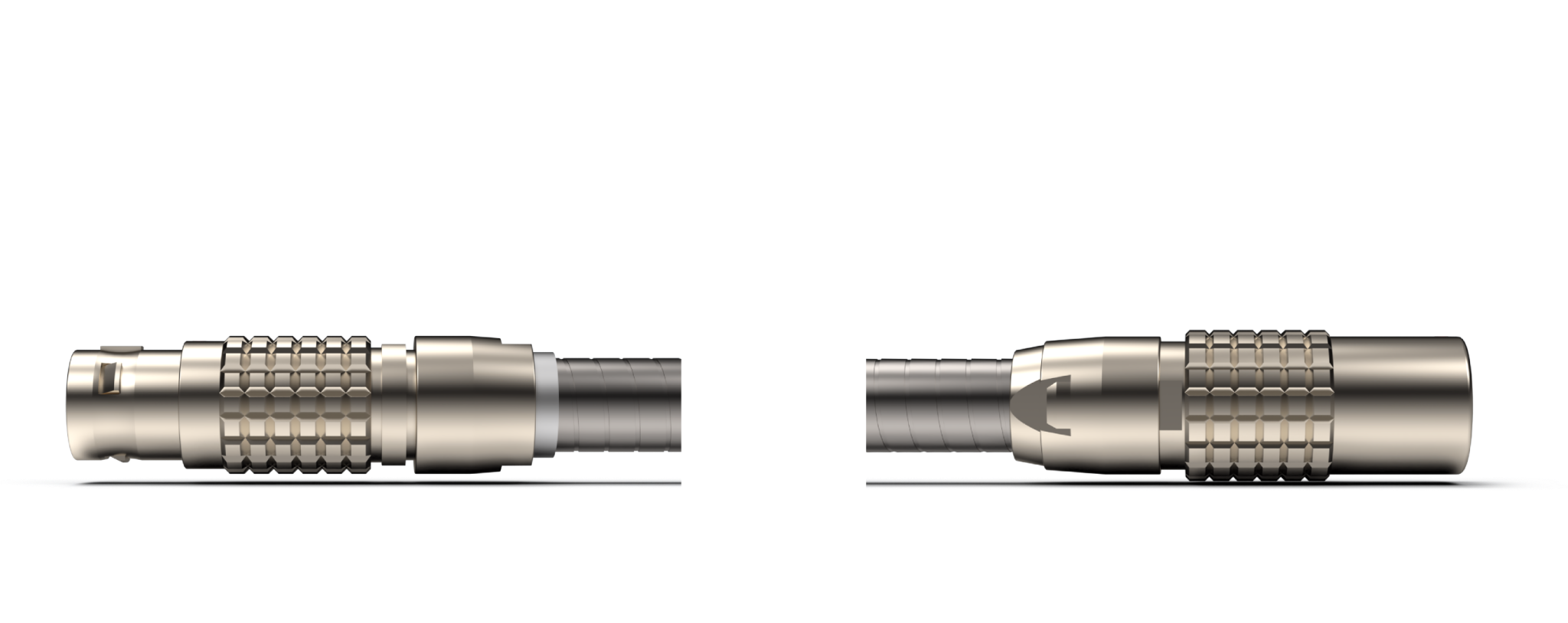

Probe extension cable
Custom lengths and configurations are available on request. However, the most common standards are listed in the table below.
| Part Number | Drawing Number | Description | Length | Download |
|---|---|---|---|---|
| HYC.CBL.LEN.012.616 | 3B1640 | Probe connection cable | 1.2m |  |
| HYC.CBL.LEN.020.617 | 3B1640 | Probe connection cable | 2m | |
| HYC.CBL.LEN.030.618 | 3B1640 | Probe connection cable | 3m | |
| HYC.CBL.LEN.050.619 | 3B1640 | Probe connection cable | 5m | |
| HYC.CBL.LEN.080.620 | 3B1640 | Probe connection cable | 8m | |
| HYC.CBL.LEN.100.621 | 3B1640 | Probe connection cable | 10m | |
| HYC.CBL.LEN.120.622 | 3B1640 | Probe connection cable | 12m | |
| HYC.CBL.LEN.150.623 | 3B1640 | Probe connection cable | 15m | |
| HYC.CBL.LEN.200.624 | 3B1640 | Probe connection cable | 20m | |
| HYC.CBL.LEN.012.637 | 3B1650 | Probe cable straight | 1.2m | |
| HYC.CBL.LEN.020.638 | 3B1650 | Probe cable straight | 2m | |
| HYC.CBL.LEN.030.639 | 3B1650 | Probe cable straight | 3m | |
| HYC.CBL.LEN.035.640 | 3B1650 | Probe cable straight | 3.5m | |
| HYC.CBL.LEN.050.641 | 3B1650 | Probe cable straight | 5m | |
| HYC.CBL.LEN.080.642 | 3B1650 | Probe cable straight | 8m | |
| HYC.CBL.LEN.100.643 | 3B1650 | Probe cable straight | 10m | |
| HYC.CBL.LEN.120.644 | 3B1650 | Probe cable straight | 12m | |
| HYC.CBL.LEN.150.645 | 3B1650 | Probe cable straight | 15m | |
| HYC.CBL.LEN.200.646 | 3B1650 | Probe cable straight | 20m | |
| HYC.CBL.LEN.030.650 | 3B1655 | Probe extension cable | 3m | |
| HYC.CBL.LEN.050.651 | 3B1655 | Probe extension cable | 5m | |
| HYC.CBL.LEN.080.648 | 3B1655 | Probe extension cable | 8m | |
| HYC.CBL.LEN.100.652 | 3B1655 | Probe extension cable | 10m | |
| HYC.CBL.LEN.120.653 | 3B1655 | Probe extension cable | 12m | |
| HYC.CBL.LEN.150.654 | 3B1655 | Probe extension cable | 15m | |
| HYC.CBL.LEN.200.655 | 3B1655 | Probe extension cable | 20m | |
