The Heart of Our Technology
At the core of our cutting-edge technology lies the remarkable Hycal sensor. This innovative sensor boasts a patented solid-state reference, setting it apart from traditional technologies. The Hycal sensor can measure hydrogen without the need for an external hydrogen reference.
Key differentiator
Unlike legacy technologies, our Hycal sensor eliminates the need for a recirculating gas loop. Hydrogen is only required to come to equilibrium around the sensor within the probe. It is therefore unnecessary for the sampled gas to be circulated through the analyser which in turn requires substantially less time for the equilibrated hydrogen measurement to be effected.
Extended Distance Capabilities
As the Hycal probe doesn’t need to be in close proximity to the analyzer, this flexibility opens up new possibilities for your hydrogen measurements. It allows measurements to be made in remote and hard-to-reach locations where the probe may be separated from the analyser by distances in some cases more than 20 metres.
Faster Measurement
The Hycal sensor’s design leads to quicker measurements.
Enhanced Accuracy
The Hycal probe provides unrivalled accuracy which can be conveniently verified by testing in-situ with a calibration reference gas.
Oscillation-less
Due to the rapid nature of the diffusion of hydrogen coming from the aluminium into the Hycal probe, there is no requirement for the probe to oscillate to encourage equilibrium. This in turn allows the Hycal probe to be deployed in static and even pressurised / sealed environments – such as Low Pressure Die Casting furnaces.
Automation-Ready
The Hycal sensor seamlessly integrates into automated systems (i.e. Hycal actuator), eliminating the need for manual handling.

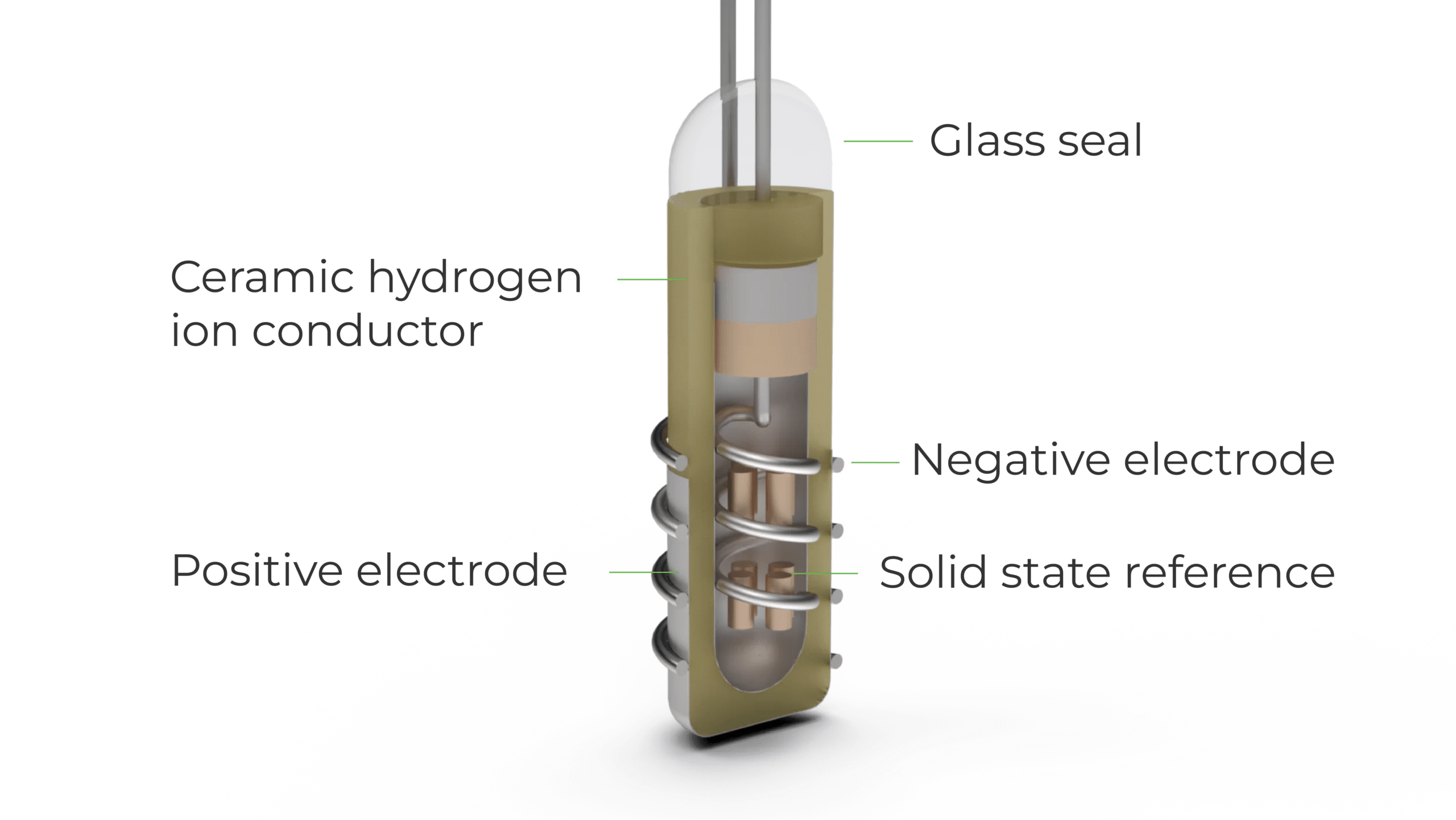

The patented sensor design employs novel materials which provide a hydrogen reference internally within the sensor eleminating the requirement for an external hydrogen reference gas or external gas measurement. The voltage developed between the positive and negative electrodes directly relates to the pH2, the partial pressure of hydrogen.
100
measurements
20
hours life
5 – 10
mins / test
0.01
ml / 100g accuracy
